Description:

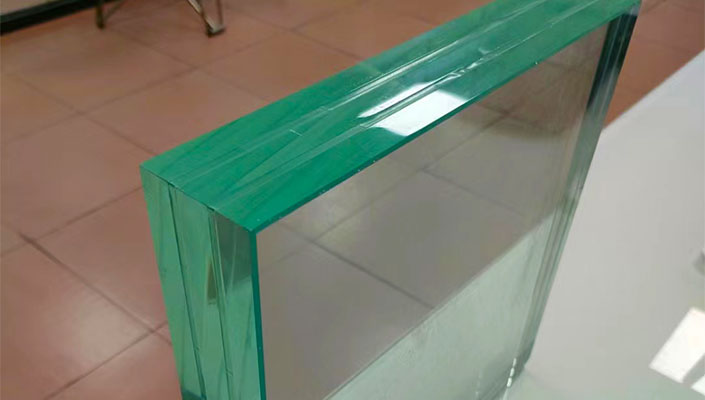

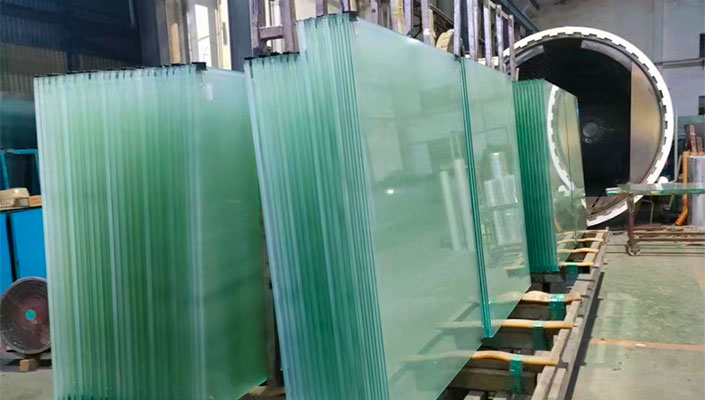

Laminated glass is a composite glass product consisting of two or more pieces of glass with one or more layers of SGP film sandwiched between them. After special high-temperature preloading (or vacuum pumping), high-temperature and high-pressure processing, the glass and the intermediate film are permanently bonded into one.
The common laminated glass includes transparent laminated glass and colored laminated glass.
Transparent laminated glass is composed of transparent float glass and transparent Inter-layer film. It is the most common safety glass.
There are two ways to make color laminated glass: one is composed of transparent glass and color film, and the other is composed of colored glass and transparent film. The first one is common, with rich colors, high decoration effect and high safety factor. . The second kind has long service life and is not easy to fade.
Advantages:
"SGP" will stay standing when both sides are broken as compared to "PVB" it will fall down or break when both sides have become damaged. The SGP laminated glass is five times stronger and up to 100 times stiffer than PVB laminated glass. That's why designers like to use SGP laminated glass for application which face to bad weather like ice storms, hurricane and cyclone, also for some place with war or need high security.
Since SGP is more expensive than PVB laminated glass, if the environment or situation is not bad, PVB is more cost-effective than SGP laminated glass.
Specifications:
Glass Colors | clear, extra clear,dark blue, euro bronze, euro gray, F-green, Ford blue |
SGP Film | 0.89mm, 1.52mm, 2.28mm, etc. |
SGP Colors | clear, milky white, bronze, gray, red, orange, green, blue etc. |
Size range | 300*300 mm----2500*8000 mm |
Multi-Layer Laminated | Customized to produce two-layer, three-layer, four-layer, five-layer etc. laminated glass. |
Processing Options | cut to size; edge working; drilling holes; making grooves; tempering etc. |

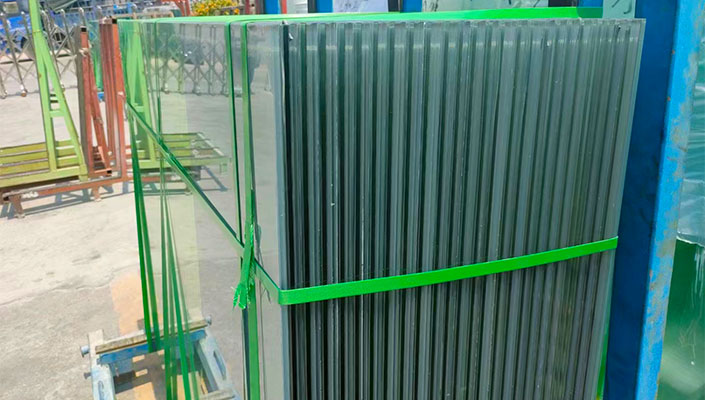

Packaging | Sea worthy plywood end cap, spray mould proof powder or plastic film between two pieces of glass. |
Applications:
Bullet-proof glass, Explosion-proof glass,High-speed train windshield, Railings - SGP hurricane glass, Ceiling, skylight,staircase, steps, floor, fence,canopy, partition, etc.
